Il sistema di accoppiamento Raufoss ABC di Kongsberg Automotive è stato lanciato nel 2008 e da allora ha ottenuto il riconoscimento globale come la soluzione di accoppiamento preferita per i sistemi pneumatici nei veicoli commerciali.
Siamo orgogliosi di annunciare che abbiamo una gamma completa di giunti ABC Raufoss che soddisfano tutti i requisiti per il sistema di frenatura ad aria compressa sui veicoli commerciali.
Dal 2021 elimineremo gradualmente la vecchia gamma di prodotti in ottone, BRK push-in e il sistema girevole P5. La produzione in serie cesserà il 31 dicembre 2020.
Qui troverai una panoramica dettagliata delle parti BRK interessate e dei corrispondenti giunti Raufoss ABC.
BRK / NEWLINE™ + THREADLESS PUSH-IN
OLD
NEW
THREADLESS
| BRK | T | D | NEWLINE™ ABC-SYSTEM | THREADLESS | SIZE |
|---|---|---|---|---|---|
| 6237185 | 4×1 | 1/8NPTF | stopped | ||
| 6237190 | 4×1 | M10x1 | 91104010 | ||
| 6237192 | 4×1 | M12x1,5 | 91104012 | 90204004 90204005 | small regular |
| 6237197 | 4×1 | M22x1,5 | stopped | ||
| 6237201 | 6×1 | 1/8NPTF | 90106049 | ||
| 6237203 | 6×1 | 1/4NPTF | 90106050 | ||
| 6237210 | 6×1 | M10x1 | 90106010 | ||
| 6237212 | 6×1 | M12x1,5 | 90106012 | 90206004 | small |
| 6237214 | 6×1 | M14x1,5 | 90106014 | ||
| 6237216 | 6×1 | M16x1,5 | 90106016 | 90206005 | regular |
| 6237217 | 6×1 | M22x1,5 | 90106022 | ||
| 6237223 | 8×1 | 1/4NPTF | 90108050 | ||
| 6237233 | 8×1 | 3/8NPTF | 90108051 | ||
| 6237230 | 8×1 | M10x1 | 90108010 | ||
| 6237232 | 8×1 | M12x1,5 | 90108012 | 90208004 | small |
| 6237234 | 8×1 | M14x1,5 | 90108014 | ||
| 6237236 | 8×1 | M16x1,5 | 90108016 | 90208005 | regular |
| 6237237 | 8×1 | M22x1,5 | 90108022 | ||
| 6237262 | 9×1,5 | M12x1,5 | stopped | ||
| 6237300 | 10×1 | M10x1 | 90110010 | ||
| 6237302 | 10×1 | M12x1,5 | 90110012 | ||
| 6237304 | 10×1 | M14x1,5 | 90110014 | ||
| 6237306 | 10×1 | M16x1,5 | 90110016 | 90210005 | regular |
| 6237307 | 10×1 | M22x1,5 | 90110022 | ||
| 6237318 | 10×1,25 | G1/4 | 90110160 | ||
| 6237311 | 10×1,25 | R1/4” | stopped | ||
| 6237322 | 10×1,25 | R 3/8” | stopped | ||
| 10×1,25 | M10x1 | 90110110 | |||
| 6237312 | 10×1,25 | M12x1,5 | 90110112 | ||
| 6237314 | 10×1,25 | M14x1,5 | 90110114 | ||
| 6237316 | 10×1,25 | M16x1,5 | 90110116 | 90210105 | regular |
| 6237317 | 10×1,25 | M22x1,5 | 90110122 | ||
| 6237323 | 10×1,5 | 1/4NPTF | stopped | ||
| 6237330 | 10×1,5 | M10x1 | 90110210 | ||
| 6237332 | 10×1,5 | M12x1,5 | 90110212 | ||
| 6237334 | 10×1,5 | M14x1,5 | 90110214 | ||
| 6237336 | 10×1,5 | M16x1,5 | 90110216 | 90210205 | regular |
| 6237337 | 10×1,5 | M22x1,5 | 90110222 | ||
| 6237356 | 11×1,5 | M16x1,5 | stopped | ||
| 6237363 | 12×1,5 | 1/4NPTF | 90112050 | ||
| 6237370 | 12×1,5 | M10x1 | 90112010 | ||
| 6237372 | 12×1,5 | M12x1,5 | 90112012 | ||
| 6237374 | 12×1,5 | M14x1,5 | 90112014 | ||
| 6237376 | 12×1,5 | M16x1,5 | 90112016 | 90212005 90212006 | regular heavy duty |
| 6237377 | 12×1,5 | M22x1,5 | 90112022 | ||
| 6237412 | 15×1,5 | R1/2” | |||
| 6237444 | 15×1,5 | M14x1,5 | 90115014 | ||
| 6237446 | 15×1,5 | M16x1,5 | 90115016 | 90215006 | heavy duty |
| 6237447 | 15×1,5 | M22x1,5 | 90115022 | ||
| 6237451 | 15×1,5 | M26x1,5 | 90115026 | ||
| 6237448 | 15×2 | M16x1,5 | stopped | ||
| 6237449 | 15×2 | M22x1,5 | stopped | ||
| 6237452 | 16×2 | M12x1,5 | 90116012 | ||
| 6237454 | 16×2 | M14x1,5 | 90116014 | ||
| 6237456 | 16×2 | M16x1,5 | 90116016 | 90216006 | heavy duty |
| 6237457 | 16×2 | M22x1,5 | 90116022 | ||
| 6237468 | 16×2 | M26x1,5 | 90116026 | ||
| 6237476 | 18×2 | M16x1,5 | no change | ||
| 6237477 | 18×2 | M22x1,5 | no change | ||
| 6237478 | 18×2 | M26x1,5 | no change | ||
| 6237110 | 1/4” | M10x1 | 90163510 | ||
| 6237112 | 1/4” | M12x1,5 | 90163512 | 90263504 | small |
| 6237114 | 1/4” | M14x1,5 | tbd | ||
| 6237116 | 1/4” | M16x1,5 | 90163516 | 90263505 | regular |
| 623 7101 | 1/4” | 1/8NPTF | 90163549 | ||
| 623 7102 | 1/4” | 1/4NPTF | 90163550 | ||
| 623 7104 | 1/4” | 1/8NPTF | 90163551 | ||
| 623 7130 | 3/8” | M10x1,0 | 90195310 | ||
| 623 7132 | 3/8” | M12x1,5 | 90195312 | ||
| 623 7134 | 3/8” | M14x1,5 | |||
| 623 7136 | 3/8” | M16x1,5 | 90195316 | 90295305 | regular |
| 623 7122 | 3/8” | 1/4NPTF | 90195350 | ||
| 623 7124 | 3/8” | 3/8NPTF | 90195351 | ||
| 623 7125 | 3/8” | 1/2NPTF | 90195352 | ||
| 623 7152 | 1/2” | M12x1,5 | 90112712 | ||
| 623 7154 | 1/2” | M14x1,5 | |||
| 623 7156 | 1/2” | M16x1,5 | 90112716 | 90212705 | regular |
| 623 7142 | 1/2” | 1/4NPTF | 90112750 | ||
| 623 7144 | 1/2” | 3/8NPTF | 90112751 | ||
| 623 7145 | 1/2” | 1/2NPTF | 90112752 | ||
| 623 7176 | 5/8” | M16x1,5 | 90115916 | 90215906 | heavy duty |
| 623 7177 | 5/8” | M22x1,5 | 90115922 | ||
| 623 7164 | 5/8” | 3/8NPTF | 90115951 | ||
| 623 7165 | 5/8” 3/4″ | 1/2NPTF M22x1,5 | 90115952 90119122 |
OLD
NEW
| BRK | T | ABC-SYSTEM |
|---|---|---|
| 623 7221 | 6×1 | 905 06 060 + 962 10 006 |
| 623 7371 | 12×1,5 | 905 12 012 + 962 10 012 |
OLD
NEW
| BRK | T | D1 | ABC-SYSTEM |
|---|---|---|---|
| 623 7208 | 6×1 | M18x1,5 | 909 06 118 |
| 623 7246 | 8×1 | M18x1,5 | 909 08 116 |
| 623 7320 | 10×1,25 | M18x1,5 | stopped |
| 623 7321 | 10×1,25 | M18x1,5 | stopped |
OLD
NEW
| BRK | T | D1 | ABC-SYSTEM |
|---|---|---|---|
| 623 7202 | 6×1 | M12x1,5 | 909 06 212 |
| 623 7224 | 8×1 | M14x1,5 | 909 06 214 |
| 623 7385 | 12×1,5 | M18x1,5 | stopped |
OLD
NEW
| BRK | T | ABC-SYSTEM |
|---|---|---|
| 623 7195 | 4×1 | |
| 623 7205 | 6×1 | 905 06 006 |
| 623 7225 | 8×1 | 905 08 008 |
| 623 7265 | 9×1,5 | stopped |
| 623 7305 | 10×1 | 905 10 010 |
| 623 7315 | 10×1,25 | 905 10 010 |
| 623 7325 | 10×1,5 | 905 10 010 |
| 623 7355 | 11×1,5 | stopped |
| 623 7365 | 12×1,5 | 905 12 012 |
| 623 7445 | 15×1,5 | 905 15 015 |
| 623 7465 | 16×2 | 905 16 016 |
| 623 7475 | 18×2 | no change |
| 623 7115 | 1/4” | |
| 623 7135 | 3/8” | |
| 623 7155 | 1/2” | |
| 623 7175 | 5/8” |
P5 / ABC BUILDING BLOCK SYSTEM
OLD
NEW
| P5 – SYSTEM | S | D | ABC SYSTEM | ABC SIZE |
|---|---|---|---|---|
| 623 7031 | P5 | 1/8 NPTF | 931 40 049 931 50 049 | small regular |
| 623 7032 | P5 | 1/4 NPTF | 931 40 050 931 50 050 | small regular |
| 623 7033 | P5 | 3/8 NPTF | 931 40 051 931 50 051 931 60 051 | small regular heavy duty |
| 623 7034 | P5 | 1/2 NPTF | 931 50 052 931 60 052 | regular heavy duty |
| 623 7020 | P5 | G1/8” | 931 40 059 931 50 059 | small regular |
| 623 7021 | P5 | G1/4” | 931 50 060 | regular |
| 623 7025 | P5 | R1/4” | 931 50 070 | regular |
| 623 7026 | P5 | R3/8” | 931 50 071 931 60 071 | regular heavy duty |
| 623 7027 | P5 | R1/2” | 931 50 072 931 60 072 | regular heavy duty |
| 623 7010 | P5 | M10x1,0 | 931 40 010 931 50 010 | small regular |
| 623 7012 | P5 | M12x1,5 | 931 40 012 931 50 012 | small regular |
| 623 7014 | P5 | M14x1,5 | 931 40 014 931 50 014 | small regular |
| 623 7016 | P5 | M16x1,5 | 931 40 016 931 50 016 931 60 016 | small regular heavy duty |
| 623 7017 | P5 | M22x1,5 | 931 50 022 931 60 022 | regular heavy duty |
| P5 | M26x1,5 | 931 60 026 | heavy duty |
OLD
NEW
| P5 – SYSTEM | S | D1 | D2 | ABC SYSTEM | ABC SIZE |
|---|---|---|---|---|---|
| 623 7043 | P5 | M22x1,5 | 3/8NPTF | stopped | |
| 623 7036 | P5 | M22x1,5 M28x1,5 | M16x1,5 M22x1,5 | 933 51 622 933 62 228 | regular heavy duty |
OLD
NEW
| P5 – SYSTEM | S | D1 | K | ABC SYSTEM | ABC SIZE |
|---|---|---|---|---|---|
| 623 7037 | P5 | M18x1,5 | K24°-12 | 933 52 418 | regular |
OLD
NEW

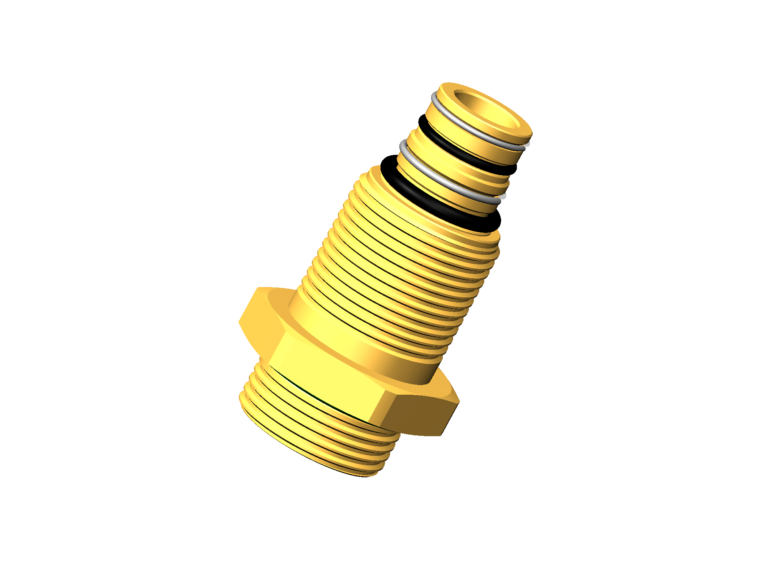

| P5 – SYSTEM | S | D1 | D2 | ABC SYSTEM | ABC SIZE |
|---|---|---|---|---|---|
| 623 7038 | P5 | M16x1,5 | M22x1,5 | 933 52 216 | regular |
| 623 7038 | P5 | M22x1,5 | M22x1,5 | 933 52 222 | regular |
OLD
NEW
| D1 | ABC SYSTEM | ABC SIZE | ||
|---|---|---|---|---|
| M22x1,5 | 933 52 205 | regular | ||
| M22x1,5 | 933 52 205 | heavy duty |
OLD
NEW
| BRK PUSH-IN | PORT OF PUSH-IN | ABC SYSTEM | ABC SIZE |
|---|---|---|---|
| 623 7192 623 7192 | 4×1 | 902 04 004 902 04 005 | small regular |
| 623 7212 623 7216 | 6×1 | 902 06 004 902 06 005 | small regular |
| 623 7232 623 7236 | 8×1 | 902 08 004 902 08 005 | small regular |
| 623 7306 | 10×1,0 | 902 10 005 | regular |
| 623 7316 | 10×1,25 | 902 10 005 | regular |
| 623 7336 | 10×1,5 | 902 10 005 | regular |
| 623 7376 | 12×1,5 8×1 | 902 10 005 902 10 006 | regular heavy duty |
| 623 7446 | 15×1,5 | 902 15 006 | heavy duty |
| 623 7449 | 15×2 | stopped | |
| 623 7456 | 16×2 | 902 16 006 | heavy duty |
| 623 7112 623 7116 | 1/4” | 902 63 504 902 63 505 | small regular |
| 623 7136 | 3/8” | 902 95 305 | regular |
| 623 7156 | 1/2” | 902 12 716 | regular |
| 723 7156 | 5/8” | 902 15 916 | heavy duty |
OLD
NEW

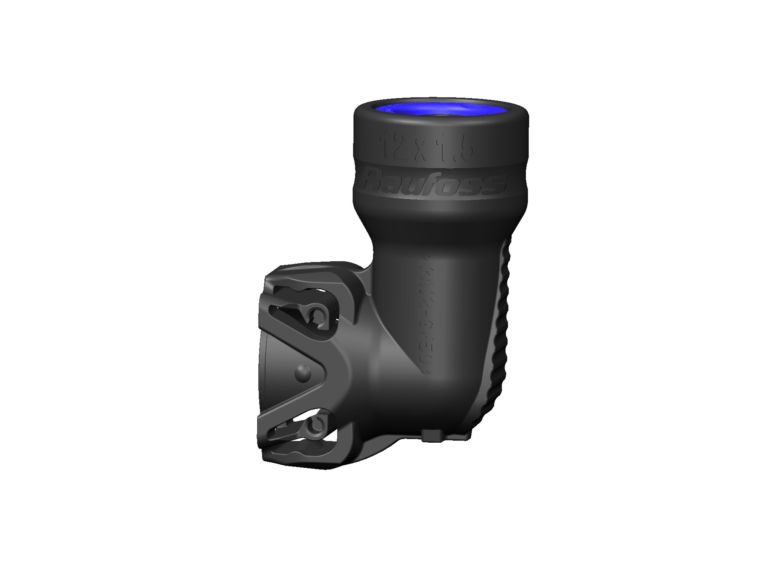

| P5 – SYSTEM | T | D | ABC SYSTEM | ABC SIZE |
|---|---|---|---|---|
| 6236816 | 6×1 | P5 | 90306004 | small |
| 6236826 | 8×1 | P5 | 90308004 90308005 | small regular |
| 6236991 | 10×1 | P5 | 90310005 | regular |
| 6236814 | 10×1,25 | P5 | 90310105 | regular |
| 6236824 | 10×1,5 | P5 | 90310205 | regular |
| 6236836 | 12×1,5 | P5 | 90312205 | regular |
| 6236992 | 15×1,5 | P5 | 90315006 | heavy duty |
| 6236993 | 15×2 | P5 | stopped | |
| 6236840 | 16×2 | P5 | 90316006 | heavy duty |
| 1/4” | 90363504 | small | ||
| 3/8” | 90395305 | regular | ||
| 1/2” | 90312716 | regular | ||
| 5/8” | 90315916 | heavy duty |
| P5 – SYSTEM | S | D | ABC SYSTEM | ABC SIZE |
|---|---|---|---|---|
| 623 7057 | P5 | M22x1,5 | stopped |
OLD
NEW
| P5 – SYSTEM | S | D | ABC SYSTEM | ABC SIZE |
|---|---|---|---|---|
| 623 6832 | P5 | M16x1,5 | 920 40 045 920 50 045 920 60 045 | small regular heavy duty |
OLD
NEW

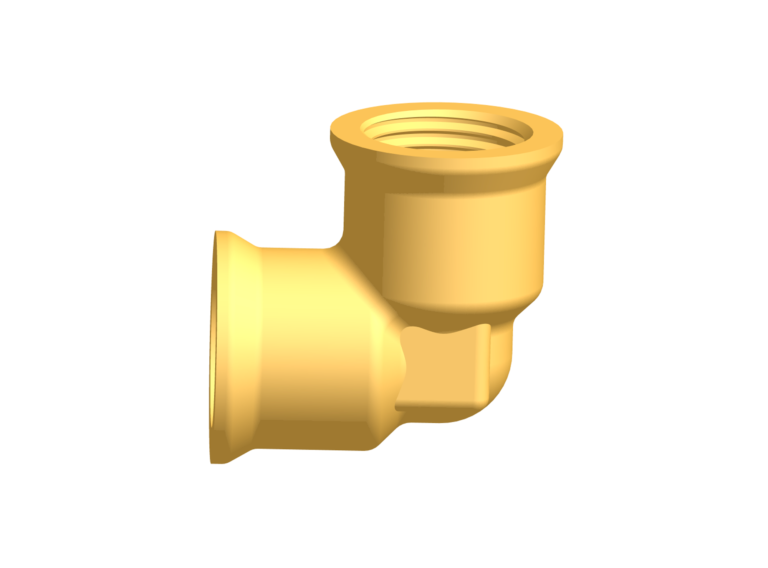

| P5 – SYSTEM | S | D | ABC SYSTEM | ABC SIZE |
|---|---|---|---|---|
| 623 6803 | P5 | M12x1,5 | 920 50 090 | regular |
| 623 6833 | P5 | M16x1,5 | 920 50 090 920 60 090 | regular heavy duty |
OLD
NEW
| P5 – SYSTEM | S | D | ABC SYSTEM | ABC SIZE |
|---|---|---|---|---|
| 920 40 015 | small | |||
| 623 6845 | P5 | M16x1,5 | 920 50 015 920 60 015 | regular heavy duty |
OLD
NEW
| P5 – SYSTEM | S | D | ABC SYSTEM | ABC SIZE |
|---|---|---|---|---|
| 623 6804 | P5 | M12x1,5 | 920 40 010 | small |
| 623 6834 | P5 | M16x1,5 | 920 50 010 920 60 010 | regular heavy duty |
OLD
NEW
| P5 – SYSTEM | S | D | ABC SYSTEM | ABC SIZE |
|---|---|---|---|---|
| 623 6805 | P5 | M12x1,5 | 920 40 010 | small |
| 623 6835 | P5 | M16x1,5 | 920 50 010 920 60 010 | regular heavy duty |
OLD
NEW

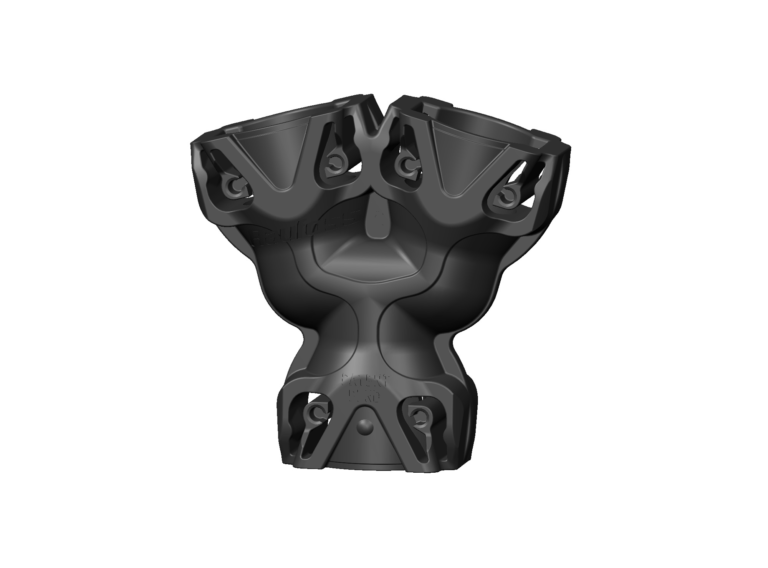

| ABC SYSTEM | ABC SIZE | |||
|---|---|---|---|---|
| 920 40 030 920 50 030 | small regular |
OLD
NEW
| P5 – SYSTEM | S | D | ABC SYSTEM | ABC SIZE |
|---|---|---|---|---|
| 623 6846 | P5 | M16x1,5 | 920 40 060 920 52 060 920 60 060 | small regular heavy duty |
OLD
NEW
| P5 – SYSTEM | S | D | ABC SYSTEM | ABC SIZE |
|---|---|---|---|---|
| 623 6838 | P5 | M16x1,5 | 920 50 070 920 60 070 | small heavy duty |
OLD
NEW
| P5 – SYSTEM | S | D | ABC SYSTEM | ABC SIZE |
|---|---|---|---|---|
| 623 6839 | P5 | M16x1,6 | 920 50 061 920 60 061 | regular heavy duty |
OLD
NEW
| P5 – SYSTEM | S | D | ABC SYSTEM | ABC SIZE |
|---|---|---|---|---|
| 623 6837 | P5 | M16x1,5 | 920 50 061 920 60 061 | regular heavy duty |
P5 / ABC BUILDING BLOCK SYSTEM
PARTLY REPLACED, BRASS VERSION WILL CONTINUE
OLD
NEW
| P5 – SYSTEM | D | ABC SYSTEM | ABC SIZE |
|---|---|---|---|
| 623 7776 | M16x1,5 | 960 50 000 | regular |
OLD
NEW
| P5 – SYSTEM INSIDE THREAD | D1 | D2 | ABC SYSTEM | ABC SIZE |
|---|---|---|---|---|
| 623 7823 | M12x1,5 | M12x1,5 | 920 50 090 | regular |
| 623 7862 | M16x1,5 | M16x1,5 | 920 50 090 | regular |
| 623 7865 | M16x1,5 | M18x1,5 | 920 50 090 | regular |
| 623 7867 | M22x1,5 | M22x1,5 | 920 60 090 | heavy duty |
OLD
NEW
| P5 – SYSTEM | D | ABC SYSTEM | ABC SIZE |
|---|---|---|---|
| 623 7825 | M12x1,5 | 920 40 010 | small |
| 623 7864 | M16x1,5 | 920 50 010 | regular |
| 623 7868 | M22x1,5 | 920 60 010 | heavy duty |
OLD
NEW
| P5 – SYSTEM | D | ABC SYSTEM | ABC SIZE |
|---|---|---|---|
| 623 7827 | M12x1,5 | 920 50 070 | regular |
| 623 7828 | M16x1,5 | 920 50 070 | regular |
OLD
NEW
| P5 – SYSTEM | D | ABC SYSTEM | ABC SIZE |
|---|---|---|---|
| 6237863 | M16x1,5 | 920 40 024 920 50 025 | small regular |
